Part #:
CDU50-3R-A

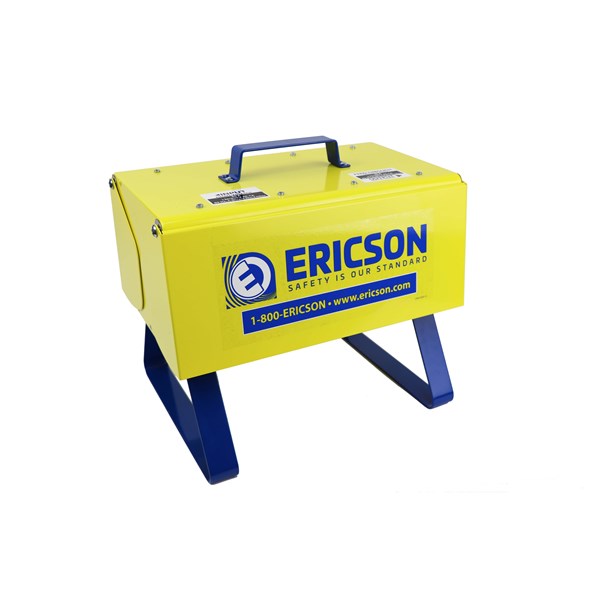

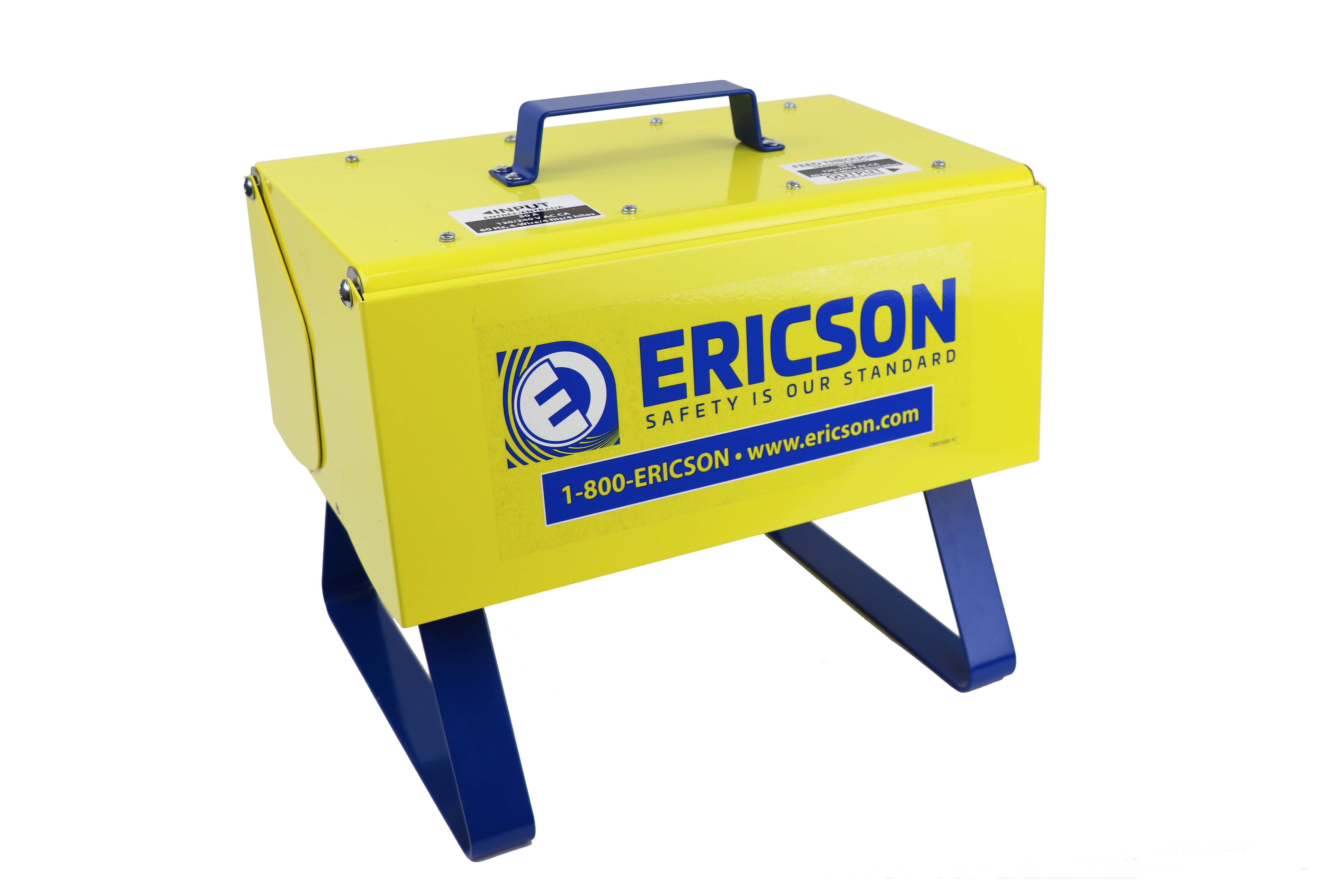

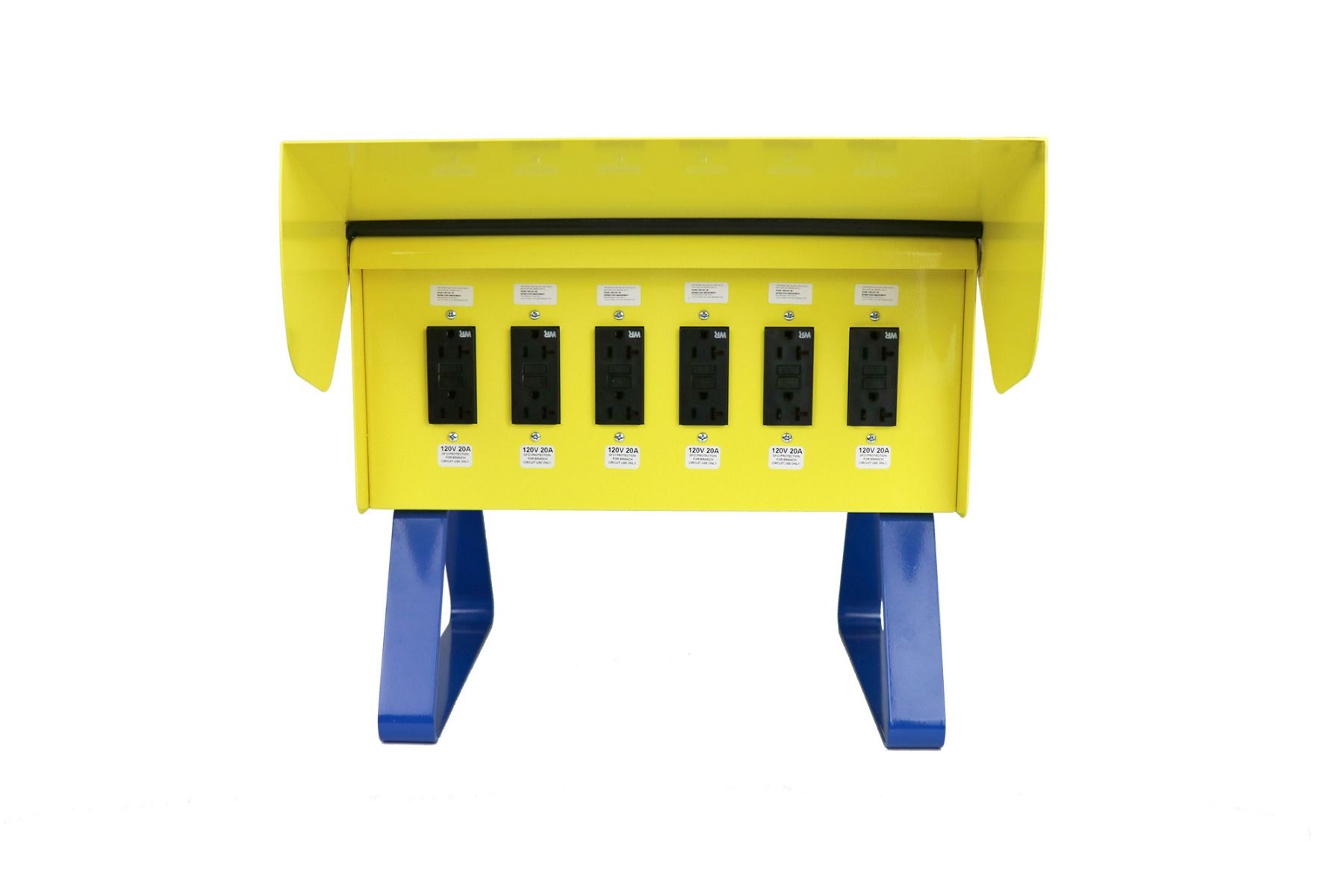

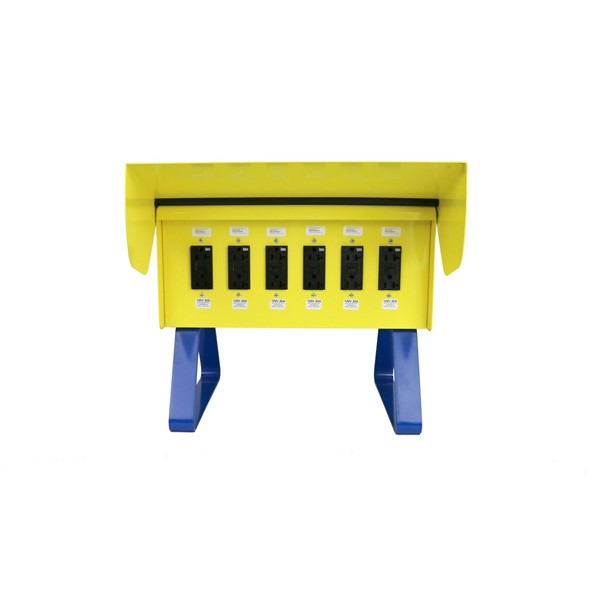

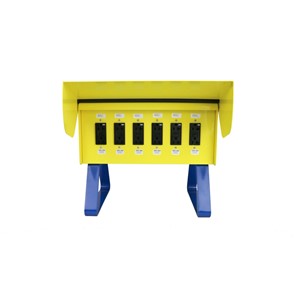

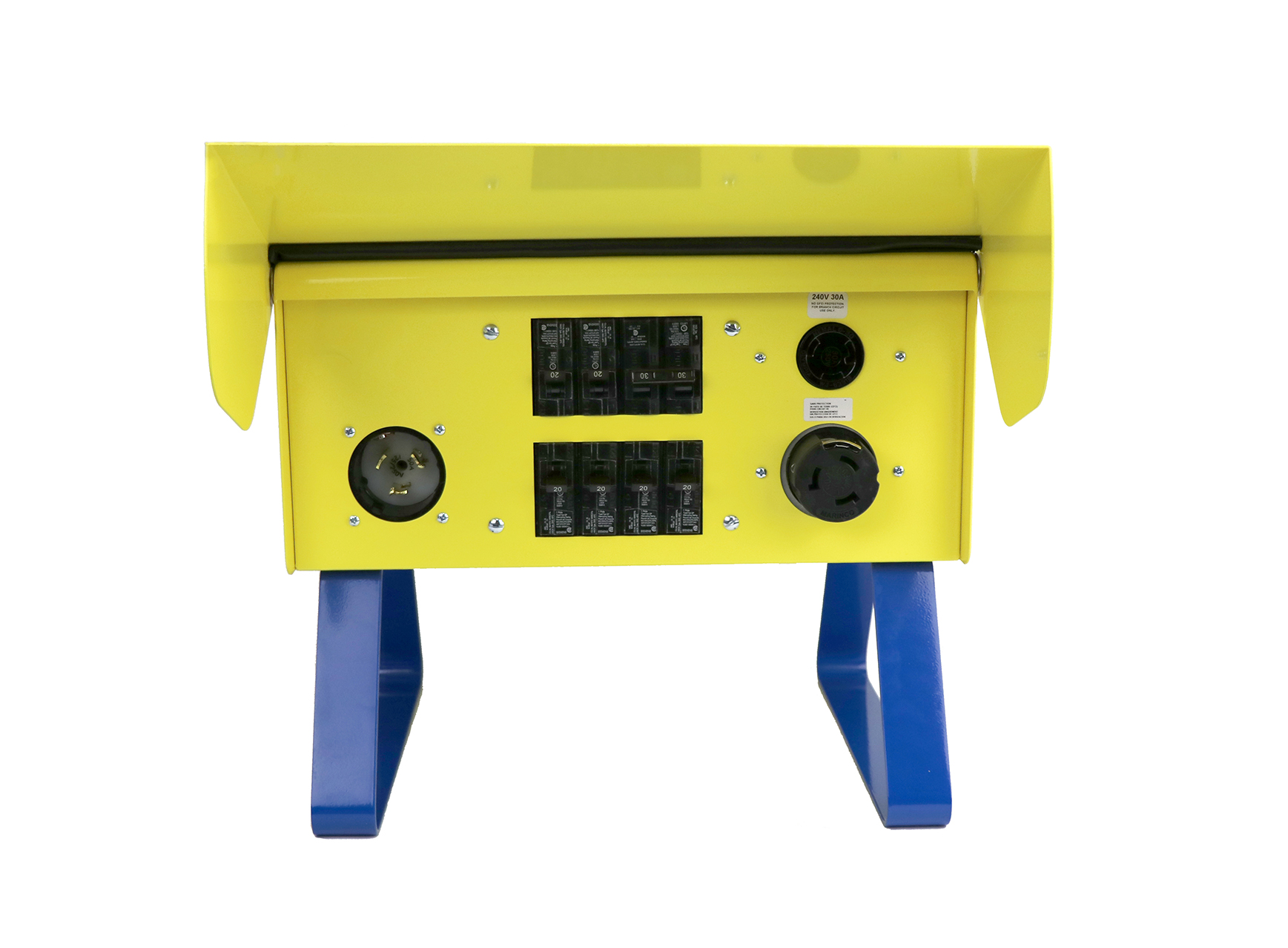

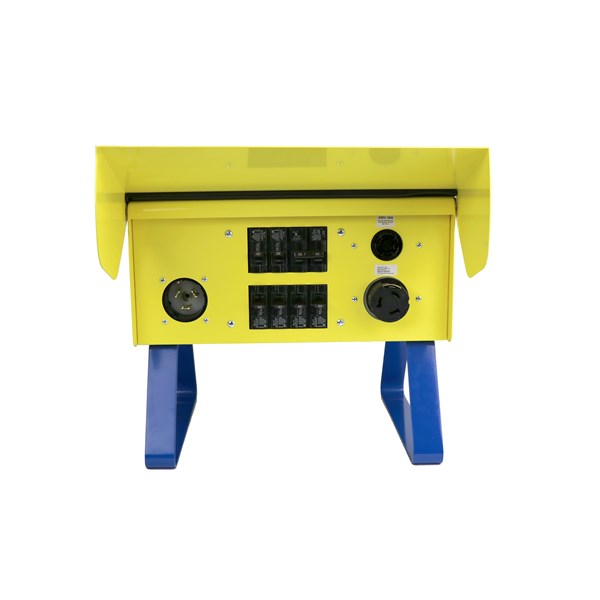

COMPACT DISTRIBUTION UNIT 50A NEMA3R W/ CS6375 INLET w/ (6) 5-20 GFCI DPLX, (6) 20A BREAKERS, (1) L6-30 w/NON-GFCI BREAKER AND 50A CALIFORNIA STYLE FEEDTHRU
| Active Revision | A |
|---|---|
| Color | Yellow |
| Pallet Qty | 18 |
| UPC Code | 782862930359 |
| Country of Origin | USA |
- Availability:
Specifications
| Active Revision | A |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | CDU |
| Category | PDUs - Power Distribution Unit |
| Sub Category | Compact Distribution Unit |
Technical Info
| Amps | 50 |
|---|---|
| Primary Voltage | 120/240 |
| Phase | 1 |
| Secondary Voltage | 120/240 |
| Main Circuit Breaker | No, Main Lug Only |
| Receptacle A Type | 5-20 GFCI DUPLEX |
| Receptacle A Qty | 6 |
| Receptacle B Type | L6-30 |
| Receptacle B Qty | 1 |
| Feed Thru | Yes |
| Construction | Steel |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| cETL | cETL Listed to CSA C22.2 No.107.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Carton Qty | 1 |
| HTS code | 8536308000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 36.80000 |
| Pallet Qty | 18 |
| Shipment Packaging Length (in) | 18 |
| Shipment Packaging Width (in) | 15 |
| Shipment Packaging Height (in) | 18 |
| Warranty | 1 Year |
