Part #:
1006-LED-100-ST

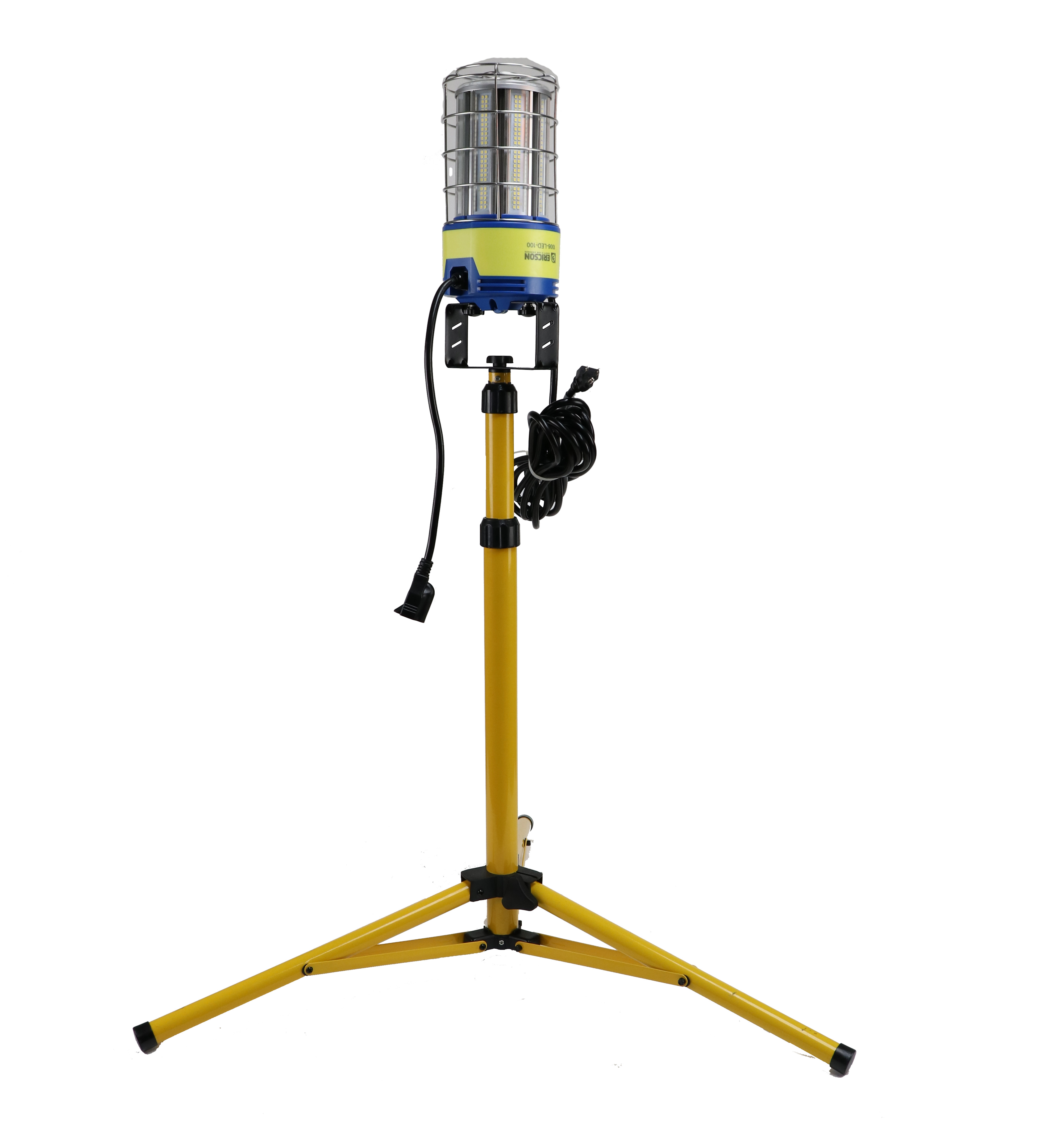

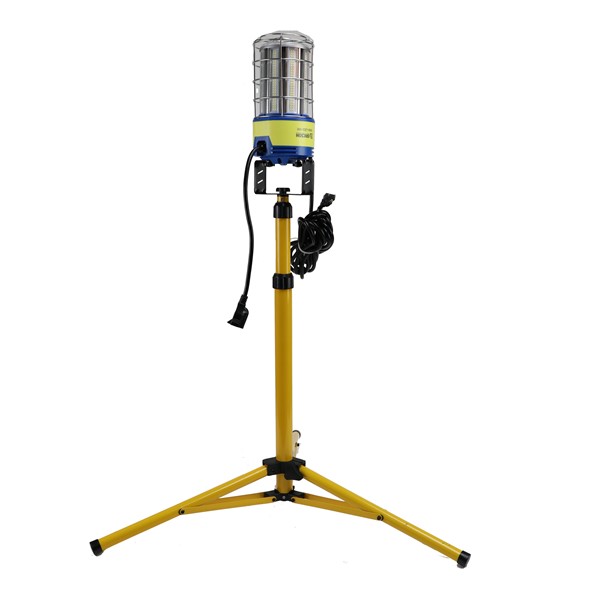

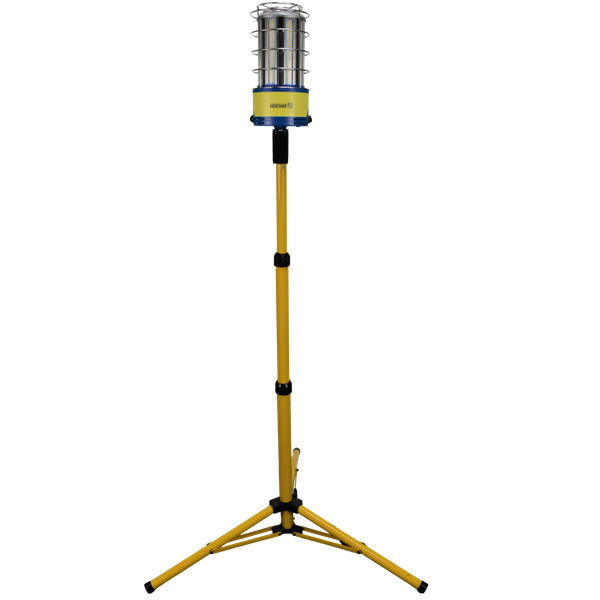

BAYLIGHT 1006 SERIES 100W LED 12000LM COB 360 DEGREE w/GUARD, w/ 5-15 PLUG ON 5FT PRIMARY AND w/ 1FT FEEDTHRU 5-15 CONNECTOR ON 16/3 CORD W/TRIPOD
• cETLus listed to UL153, CSA C22.2 No. 250.4• IP64 damp location, under roof rated• Isolated constant current power supply• 6000V surge protection• Stainless steel guard for impact protection• 12,000 Lumens (100W), 18,000 lumens (150W)• Efficient 120 Lumens/Watt LED Array• Color temperature 5000K• 15 ft. AWG 16/3 SJTW primary with molded NEMA 5-15 plug• 1 ft. AWG 16/3 SJTW secondary with molded NEMA 5-15 connector• Driver range 100-277VAC• Limited 5-year warranty• Meets OSHA requirements • CFR 1926.405(j)(1) for construction• Recommended placement to achieve OSHA min 5fc: 50’x50’ grid for 100W, 60’x60’ for 150W
| Ideal Application | Commercial and Industrial Construction, Warehousing, Tent Lighting, Large Room Lighting, Maintenance /Storage spaces |
|---|---|
| Color | Blue |
| UPC Code | 782862929599 |
| Country of Origin | CHINA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | High Bay |
| Category | Commercial Grade |
| Sub Category | Temp Work Light |
Other Resources
Technical Info
| Bulb Type | LED |
|---|---|
| Lumens | 12000 |
| Cable Length | 5 |
| Cable | 16/3 |
| Cable Type | SJTW |
| Max Amps | 13 |
| Max Watts | 100 |
| Primary Cable End | Molded NEMA 5-15 Plug |
| Secondary Cable End | Molded NEMA 5-15 Connector |
| NEMA Environment | IP64 Damp Location rated |
| Environmental Rating | IP64 |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405408440 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 6.35000 |
| Shipment Packaging Length (in) | 8.35 |
| Shipment Packaging Width (in) | 5.98 |
| Shipment Packaging Height (in) | 13.07 |
| Warranty | 1 Year |
L1000894 - Ericson Product Category Overview Guide
