Part #:
WL22-16325Y-1-D

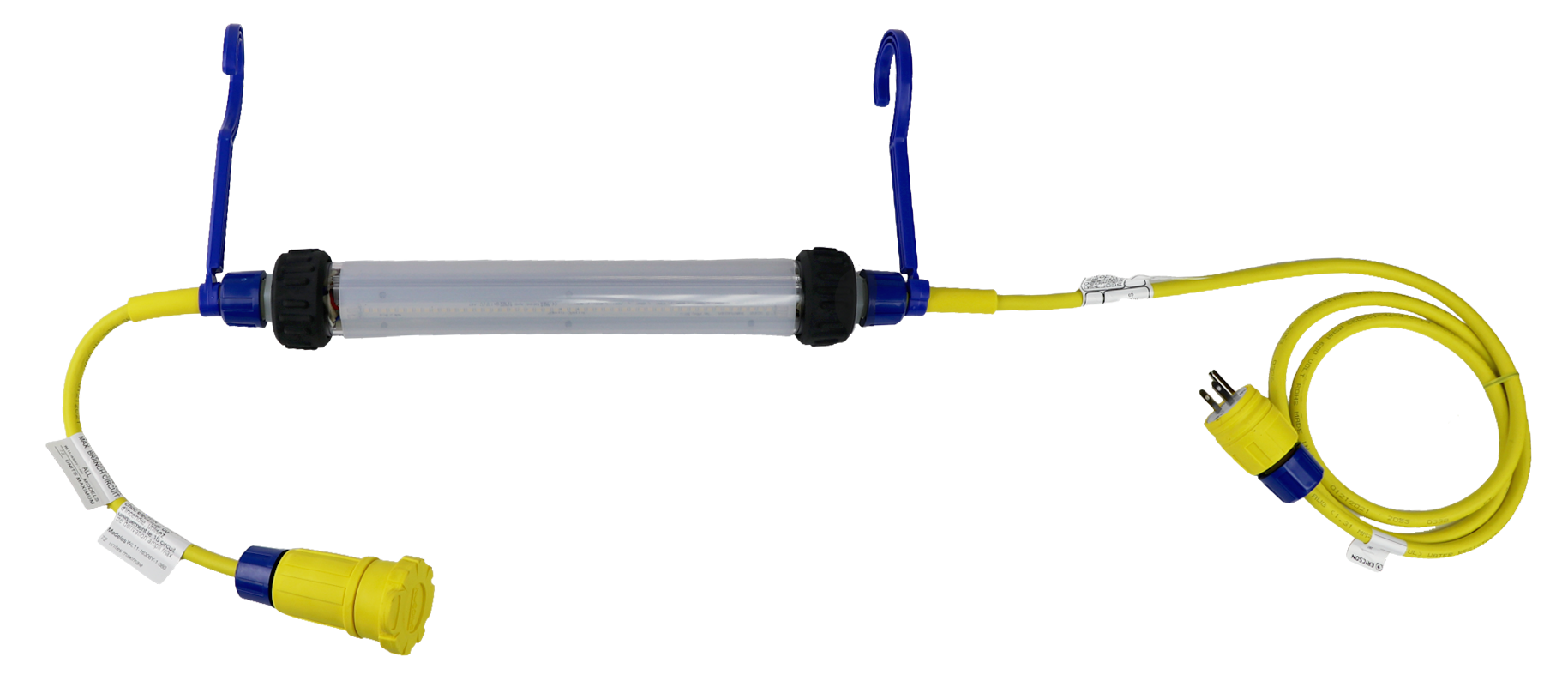

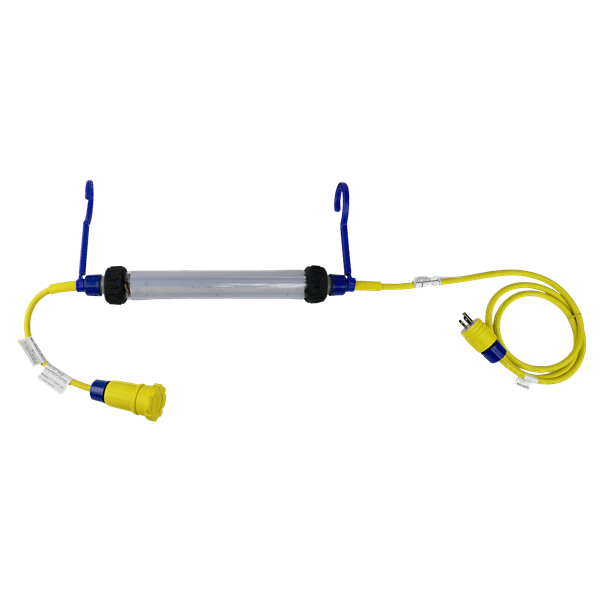

WORKLAMP 120V 2FT 25W TUBE WITH 25 FT AWG 16/3 YELLOW SOOW CORD WITH WATERTIGHT NEMA 5-15 PLUG DIRECTIONAL
• High impact, shatter-proof tube with replaceable frosted tube shield• Beam angle available in 200° and 360°• Bi-directional version offers glare protection to prevent eye strain• Wired with 15A, 125V, water-tight plug & feed-thru water-tight connector• Driver range of 100-277 volts at 50/60 Hz• Environmental rating: Suitable for outdoor use in wet locations
| Ideal Application | Overhead Task Lighting required for Maintenance ops, confined space entry, Aerospace, Ship building, Petrochem, Powergen, Mining, Emergency Response and Military applications. |
|---|---|
| Color | Yellow |
| UPC Code | 782862927717 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | WL |
| Category | Industrial Grade |
| Sub Category | Work Lamp |
Other Resources
Technical Info
| Bulb Type | LED |
|---|---|
| Lumens | 3800 |
| Cable Length | 25 |
| Cable | 16/3 |
| Cable Type | SOW |
| Max Amps | 13 |
| Max Volts | 120 |
| Max Watts | 1560 |
| Primary Cable End | NEMA 5-15 (1510-PW6P) Water Tight Plug |
| Secondary Cable End | NEMA 5-15 (1610-CW6P) Water Tight Connector |
| NEMA Environment | Outdoor Use, Wet Location |
| Finish | Non-conductive molded endcaps with shatter resistant polycarb LED tube. |
| Construction | Industrial grade, LED overhead worklamp designed for rugged environments |
Standards & Certifications
| ETL | ETL Listed |
|---|---|
| cETL | cETL Listed |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405408440 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 5.50000 |
| Shipment Packaging Length (in) | 30 |
| Shipment Packaging Width (in) | 6 |
| Shipment Packaging Height (in) | 6 |
| Warranty | 1 Year |
