Part #:
BE1-CAM2CM1120

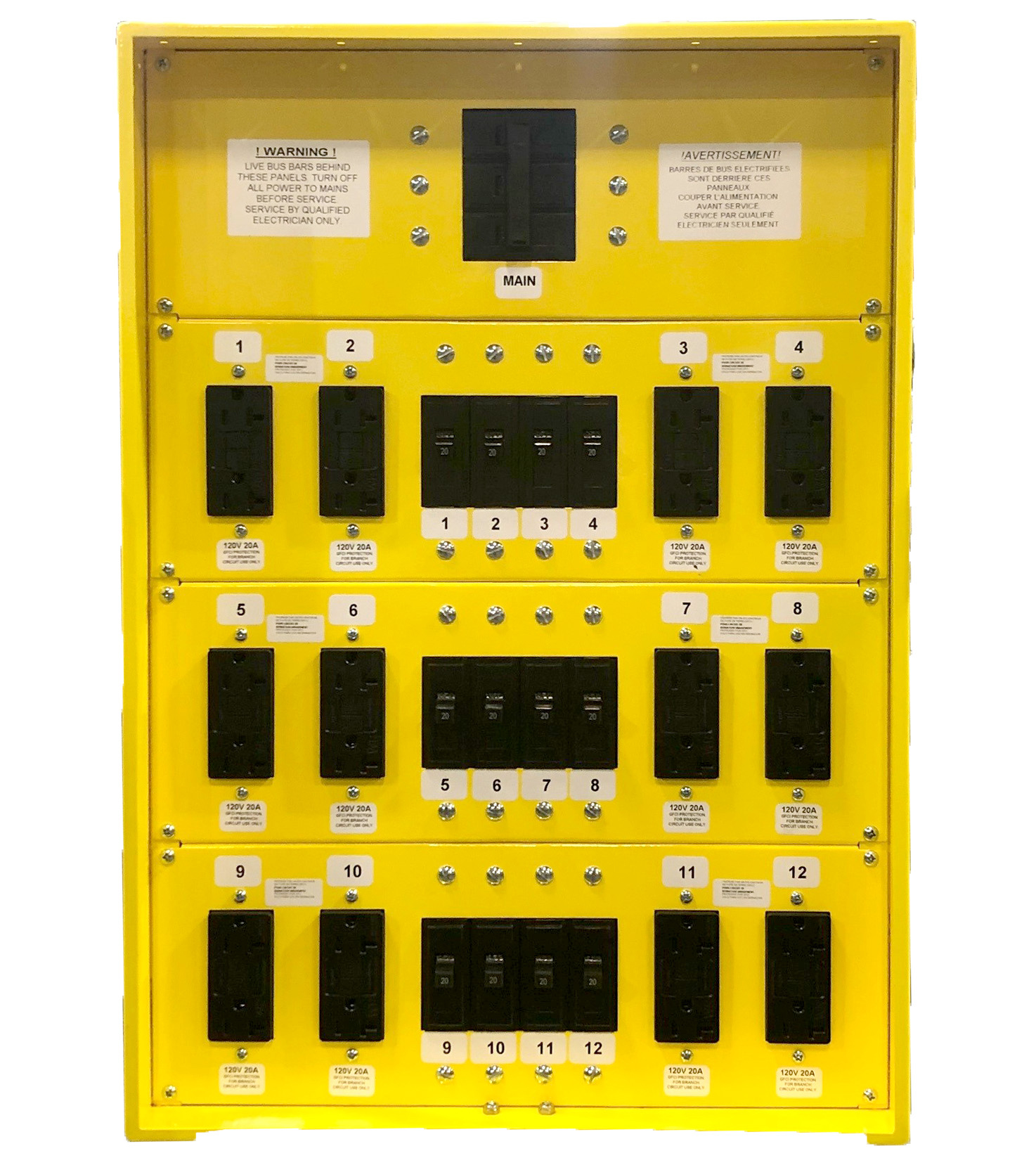

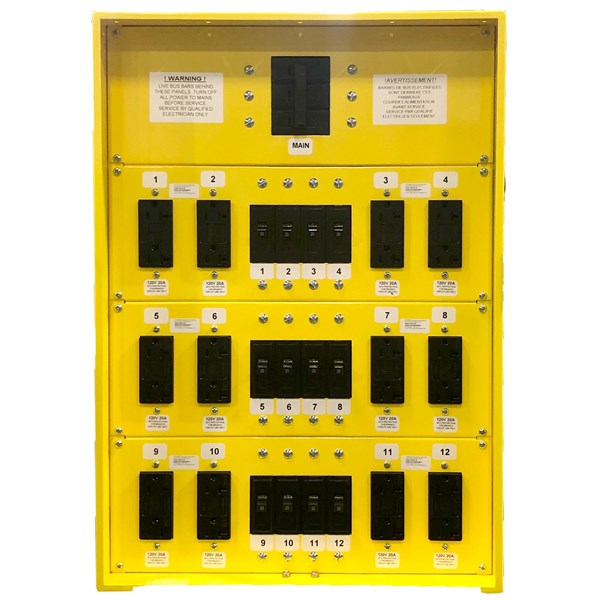

PPB - PORTABLE PANELBOARD, 1PH 120/240V 200A 2P MCB 400A CAM IN/OUT (12) 5-20 DPLX GFCI cETLus
| Active Revision | A |
|---|---|
| Ideal Application | Ericson portable power distribution units deliver safe, rugged, and reliable temporary power for demanding applications. Designed for construction, rental, marine, entertainment, and military use, they support fast deployment, repeat use, and dependable performance in harsh environments where downtime is not an option. |
| Color | Yellow |
| Pallet Qty | 2 |
| UPC Code | 782862928981 |
| Country of Origin | USA |
- Availability:
Specifications
| Active Revision | A |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | Combo Box |
| Category | PDUs - Power Distribution Unit |
| Sub Category | PPB - Portable Panelboard |
Technical Info
| Amps | 200 |
|---|---|
| Primary Input | CAM LOCK Recept (5 Male) |
| Primary Voltage | 120/240 |
| Phase | 1 |
| Secondary Voltage | 120 |
| Main Circuit Breaker | Yes, Main Circuit Breaker |
| Receptacle A Type | 5-20 GFCI DUPLEX |
| Receptacle A Qty | 18 |
| Feed Thru | Yes |
| Construction | Steel & Aluminum |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| cETL | cETL Listed to CSA C22.2 No.107.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8537109170 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 120.00000 |
| Pallet Qty | 2 |
| Shipment Packaging Length (in) | 28 |
| Shipment Packaging Width (in) | 29 |
| Shipment Packaging Height (in) | 40 |
| Warranty | 1 Year |
