Part #:
EC2-B-4375-CM30242

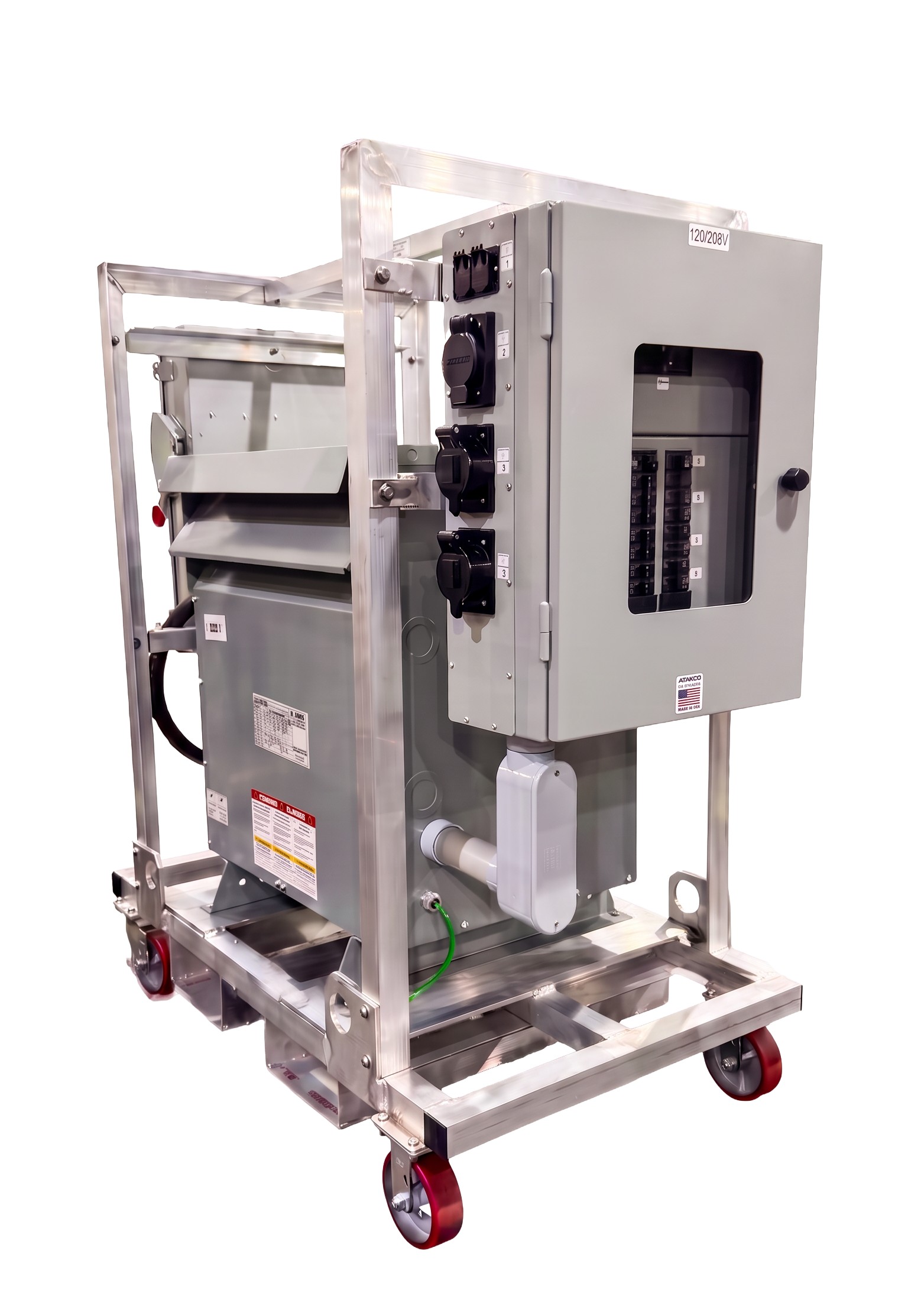

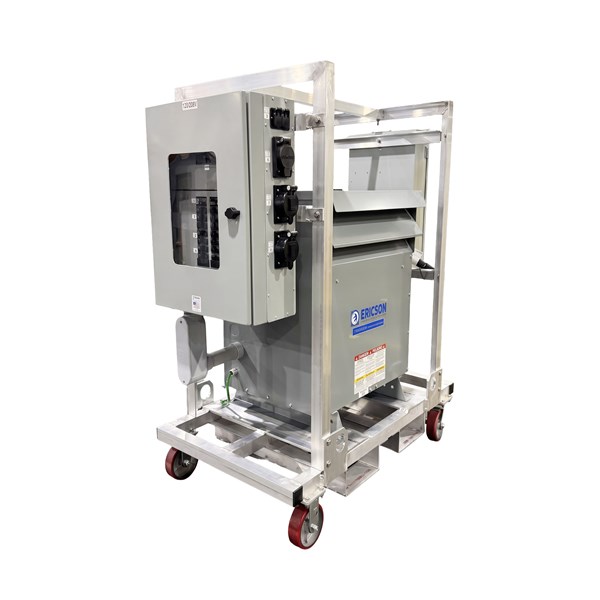

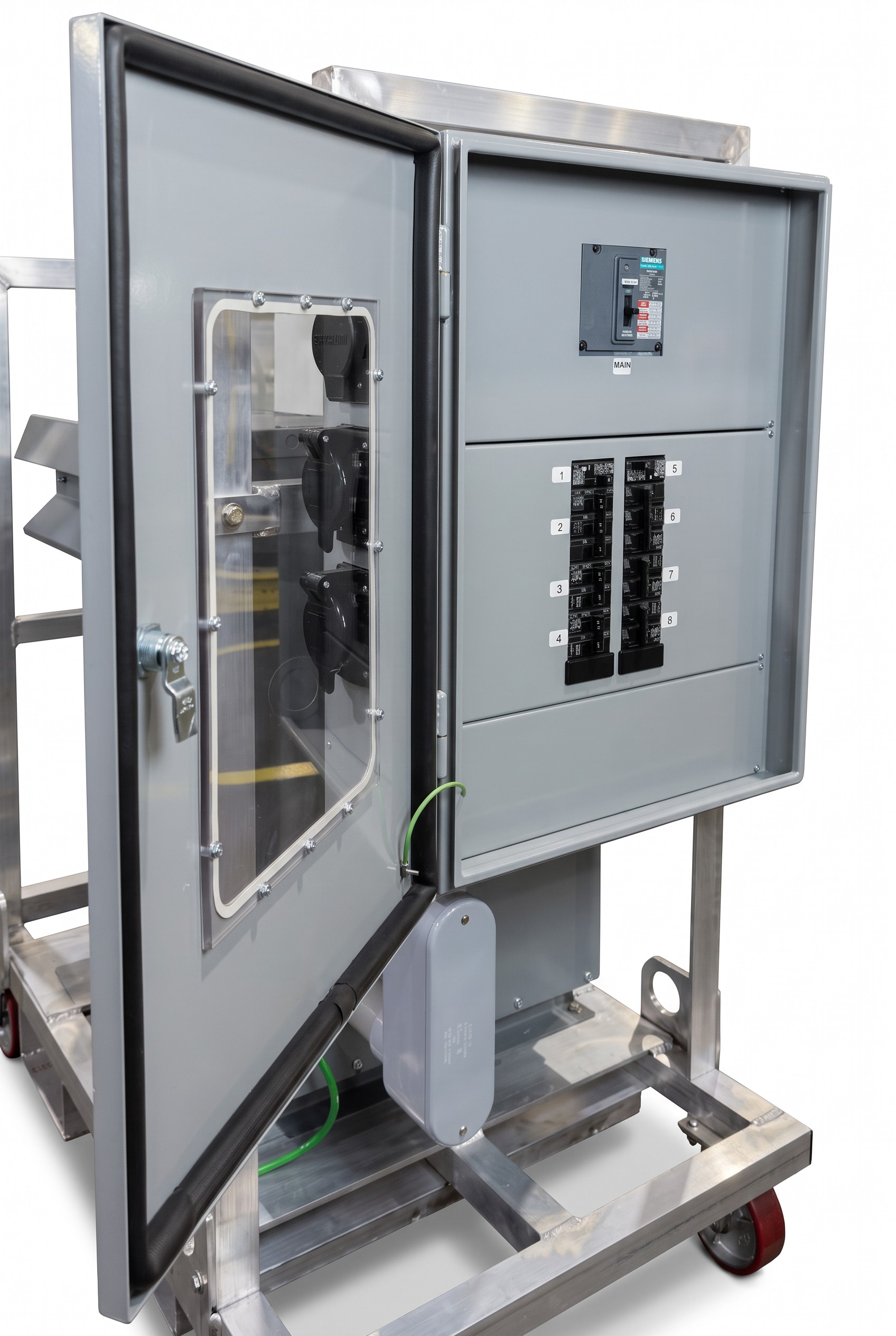

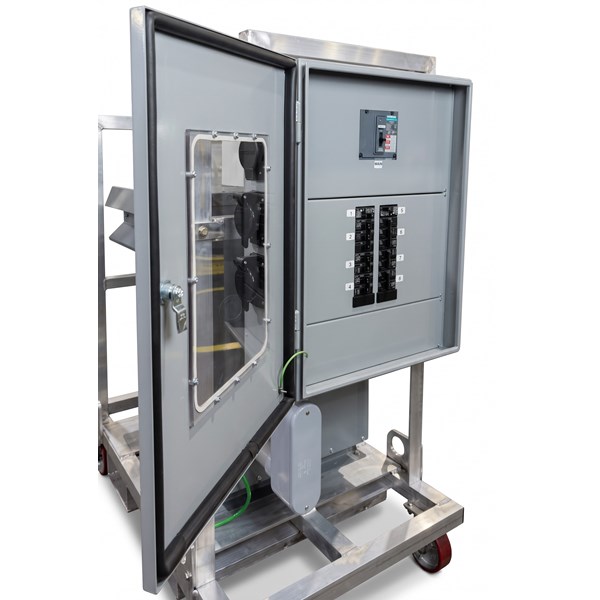

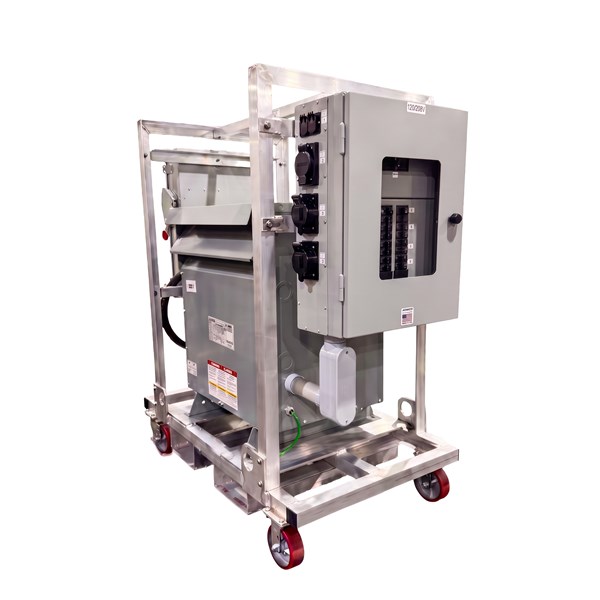

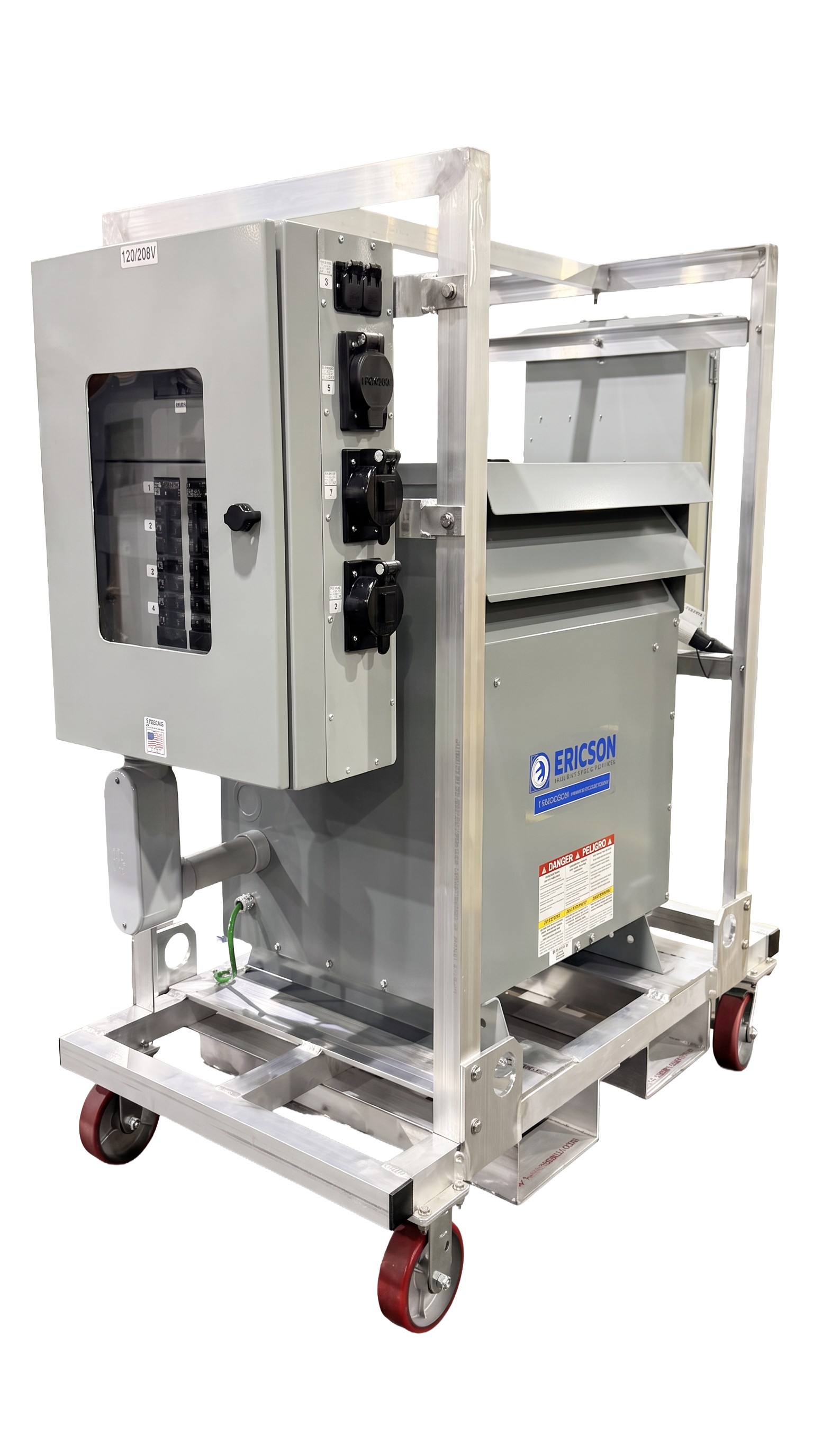

E-CART 2 HI BOY 75KVA 480V 3PH PRIMARY SIDE 5 BAY SIDE DOOR COMBO ENCL W/ 100A 3P MAIN, HARDWIRE INPUT TERMINAL BLOCK W/SECONDARY SIDE 5 BAY SIDE DOOR COMBO ENCL W/(4) CS6369 RCPT (2) L21-20 RCPT (2) 5-20 DPLX RCPT LISTED & RECOGNIZED COMPONENTS
| Active Revision | B |
|---|---|
| Ideal Application | Any application that requires a reliable and safe transformation and distribution of electrical power. |
| Color | Gray & Yellow |
| Pallet Qty | 1 |
| UPC Code | 782862941560 |
| Country of Origin | USA |
- Availability:
Specifications
| Active Revision | B |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | e-Cart |
| Category | PTUs - Power Transformation |
| Sub Category | PTU - Transformer 4 Wheel Cart |
Technical Info
| Amps | 200 |
|---|---|
| Primary Input | Hardwire In |
| Primary Voltage | 480 |
| Phase | 3 |
| Transformer kVA | 75 |
| Secondary Voltage | 120/208 |
| Main Circuit Breaker | Yes, Main Circuit Breaker |
| Receptacle A Type | L21-20 |
| Receptacle A Qty | 2 |
| Receptacle B Type | CS6369 |
| Receptacle B Qty | 4 |
| Feed Thru | No |
| Construction | Aluminum frame, open |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8504330040 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 850.00000 |
| Pallet Qty | 1 |
| Shipment Packaging Length (in) | 54 |
| Shipment Packaging Width (in) | 32 |
| Shipment Packaging Height (in) | 61 |
| Warranty | 1 Year |
