Part #:
PPB-600A-MCB-I36-3PH-600-2-CORE

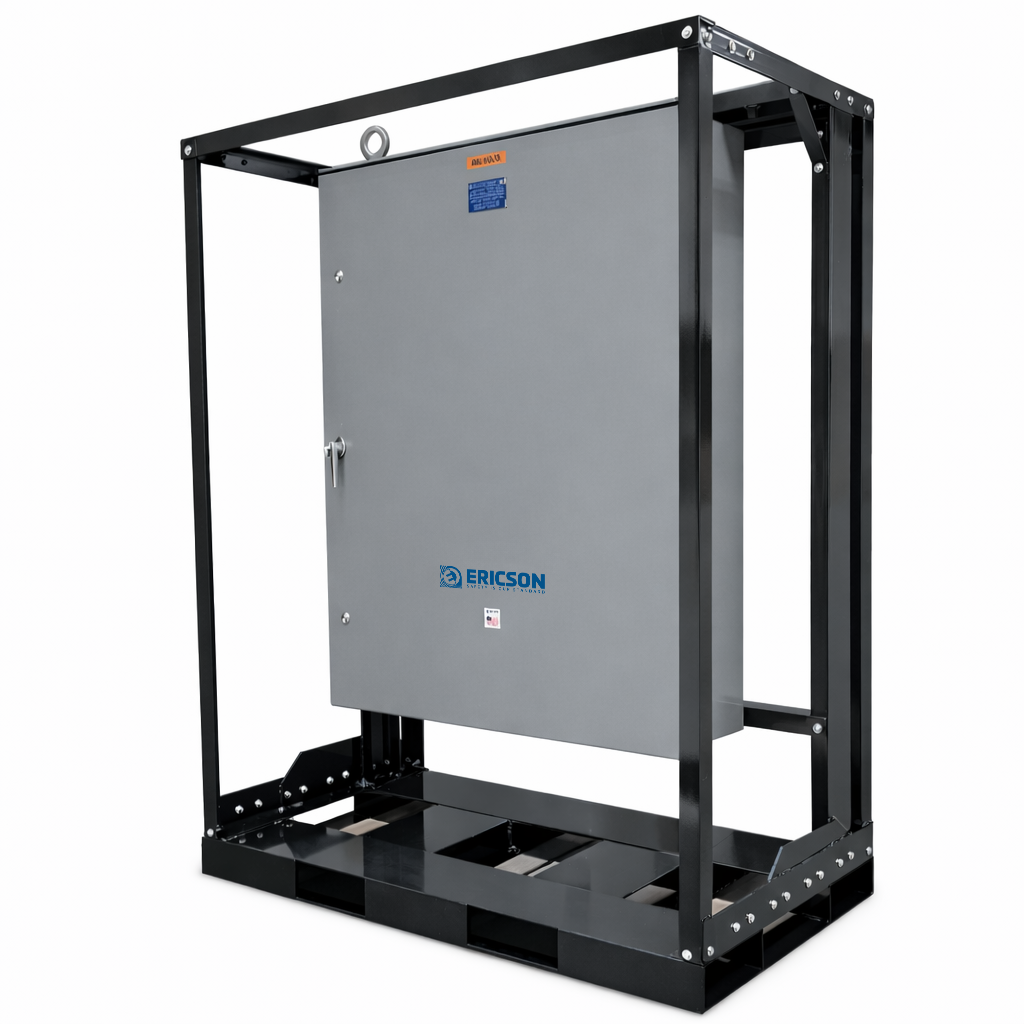

PPB - PORTABLE PANELBOARD, CORE SERIES, 600A I-LINE MCB, 65kAIC, NEMA 3R, (4) 175A, 3P BREAKERS, 36 INCHES OF BRKR SPACE, SQ D GREY 3R ENCLOSURE, HARDWIRE IN AND OUT
| Active Revision | A |
|---|---|
| Ideal Application | Ericson portable power distribution units deliver safe, rugged, and reliable temporary power for demanding applications. Designed for construction, rental, marine, entertainment, and military use, they support fast deployment, repeat use, and dependable performance in harsh environments where downtime is not an option. |
| Color | Grey |
| Pallet Qty | 1 |
| UPC Code | 782862941911 |
| Country of Origin | USA |
- Availability:
Specifications
| Active Revision | A |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | I-Line |
| Category | PDUs - Power Distribution Unit |
| Sub Category | PPB - Portable Panelboard |
Technical Info
| Amps | 600 |
|---|---|
| Primary Input | Hardwire In |
| Primary Voltage | 600/480/120-208 |
| Phase | 3 |
| Secondary Voltage | 600/480/120-208 |
| Main Circuit Breaker | Yes, Main Circuit Breaker |
| Receptacle A Type | Hardwire |
| Feed Thru | No |
| Construction | Steel |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Gross Weight (lbs) | 0.00000 |
| Pallet Qty | 1 |
| Warranty | 1 Year |
