Selected customer:




Part #:

5123-30

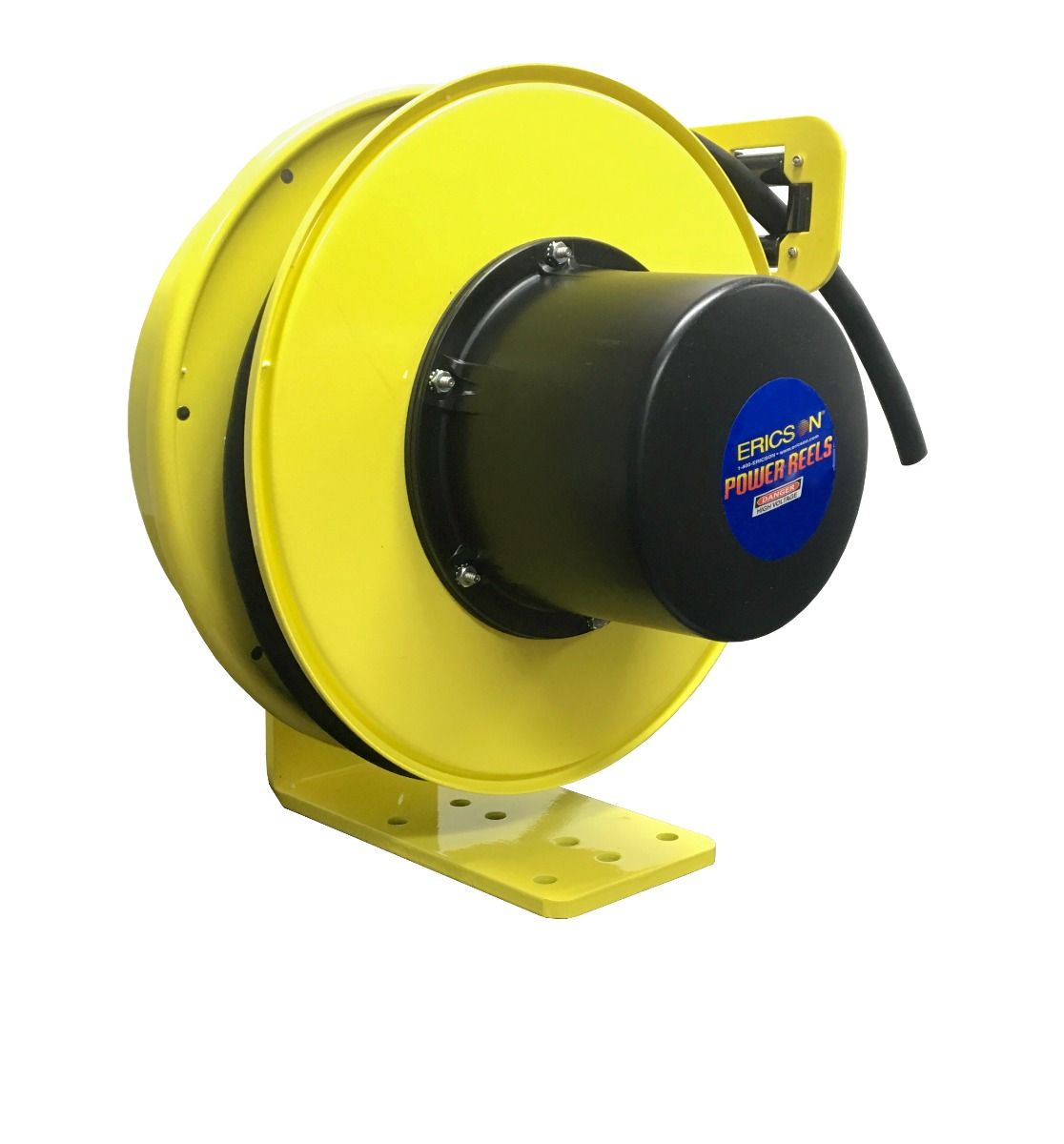

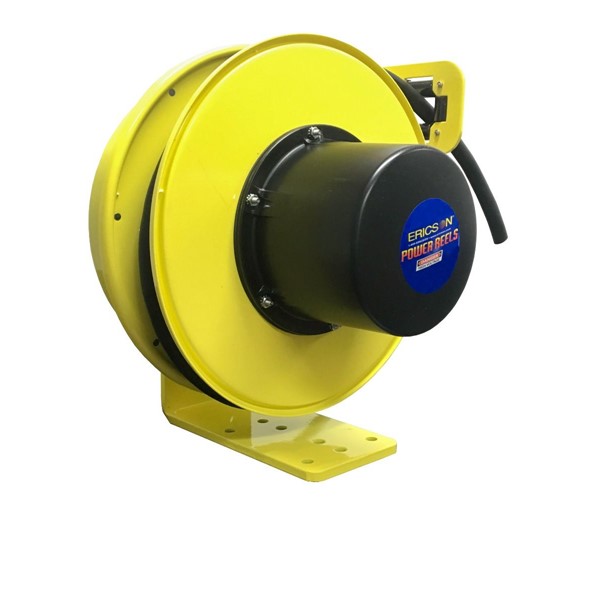

REEL INDUSTRIAL GRADE, RETRACTABLE 30 FT OF 12/3 SOW CABLE W/ BLUNT CABLE END, PRIMARY FEEDER = BLUNT CABLE END @ 1-2 FT

• Low-friction, 4-roller cable guide on guide arm
• Heavy duty formed steel stand
• Heavy all-steel construction with durable yellow powder coated finish
Listing: Blunt products UL listed and CSA certified
Flange Size: 14“ diameter
Construction: Heavy duty all-steel with durable yellow powder coated finish with nylon drum
• Black PVC Slip ring cover
• Formed steel stand with multiple mounting holes
• 4-roller cable guide–adjustable to one of 12 positions
• Ratchet can be engaged for positive lock or disengaged for constant tension
• Safety chain hole provided for overhead mounting
• Adjustable ball stop included
• Grounded slip ring assembly for safety
Termination: 6 ft. feeder cord
Cable Type: Installed with type black SOOW 600V cable
Available in 16/6, 16/8, 16/10, 16/12, 14/6, 14/8, 14/10, 12/3, 12/4, 12/6, 12/8, 10/3, 10/4, 10/6
Environmental: Rated NEMA 4 for indoor and outdoor
Electrical Ratings: Max rating of Slip Ring = 35A, 600V
Options: Stretch or retrieve application, black or white powder coat finish, secondary attachments, pivot base, flop over guide arm kit, black or white cable, premium cable, or Perma-Kleen™ antimicrobial cable.

Ideal Application Ideal for all types of industrial power requirements - drop lights and receptacle boxes, extendable conveyor control cables, overhead hoists, truck cranes, ladder trucks, and utility trucks.
Color Yellow
Pallet Qty 12
UPC Code 782862819531
Country of Origin USA
Availability:
Brand Ericson
Sub Brand / Trademark Pow-R-Reel
Category Retractable Cable Reels
Sub Category Industrial Grade
Reel Type 5000 - Industrial Duty (14" Spool Diameter)
Load Capacity (Amps) 20
Volts 600
Cable Length (ft) 30
AWG 12
Number of Conductors 3
Cable Type SOW
Primary Cable Blunt Cable End @ 1-2 ft
Secondary Cable Blunt Cable End
Finish Yellow Powder Coated Metal
Construction Heavy-Duty Steel Construction w/ Nylon Hub
Environmental Rating NEMA 4
UL UL Listed to ANSI/UL 355, File E59949
CSA CSA Certified to C22.2 No. 308, File 271857
Pack/Unit Qty 1
HTS code 8479810000
ECCN EAR99
Gross Weight (lbs) 60.00000
Pallet Qty 12
Shipment Packaging Length (in) 19
Shipment Packaging Width (in) 17
Shipment Packaging Height (in) 19
Warranty 1 Year
