Part Number:

86MS015A

MINI-SYNC SINGLE END MALE STRAIGHT 6 POLE 15FT PVC


Color Yellow
UPC Code 782862882955
Country of Origin USA
Availability:
Brand Ericson
Sub Brand / Trademark Perma-Sync / Mini-Sync
Category Molded Assembly
Sub Category Plug (Str)
Connector Type Mini
Configuration Style MS - Male Straight
# of Poles 6

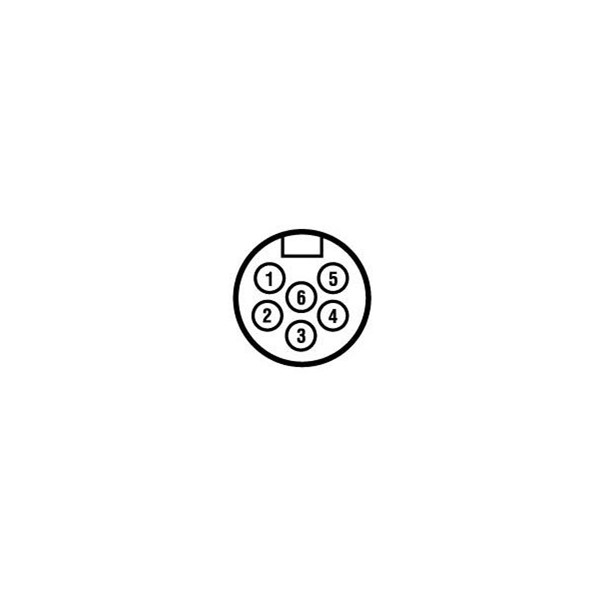

Wiring Code 1 = White, 2 = Red, 3 = Green, 4 = Orange, 5 = Black, 6 = Blue
# of Keyways Single
Cable Length (ft) 15
Cable Type 16 AWG 600VAC STOW YELLOW CABLE
Load Capacity (Amps) / Volts 8A, 600VAC
Contact Material Brass, Gold Plated over Nickel
Contact Carrier Material Nitrile Rubber
Contact Sleeve Material Stainless Steel
Over molded Body Material PVC
Coupling Nut Material Machined Aluminum, Black Anodized
Environmental Rating IP68, NEMA 6P
UR UR Recognized Component to ANSI/UL 2238, File E195472
cUR cUR Recognized Component to CSA-C22.2 No. 182.3, File E195472
Pack/Unit Qty 1
HTS code 8544429090
ECCN EAR99
Gross Weight (lbs) 2.00000
Shipment Packaging Length (in) 12
Shipment Packaging Width (in) 9
Shipment Packaging Height (in) 2
Warranty 1 Year
