Part #:
EL520P

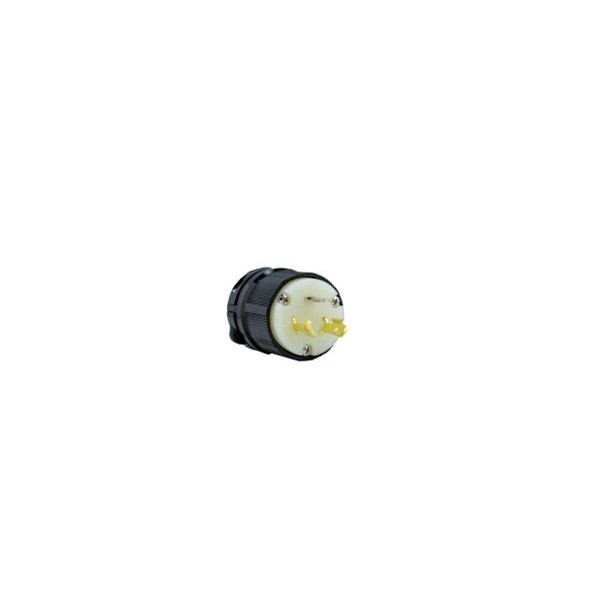

PLUG NEMA L520 LOCKING 125V 20A PERMA-SPEC 2311
| Active Revision | B |
|---|---|
| Color | Black |
| UPC Code | 782862906262 |
| Country of Origin | TAIWAN |
- Availability:
Specifications
| Active Revision | B |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | Perma-Spec |
| Category | Wiring Devices |
| Sub Category | Commercial Grade |
Technical Info
| Device Type | Plug |
|---|---|
| Blade Style | Locking |
| NEMA Configuration | NEMA L5-20 |
| Amps | 20 |
| Voltage | 125V |
| Phase | 1 |
| Poles / Wires | 2P/3W |
| Environmental Rating | Indoor |
Standards & Certifications
| UL | UL Listed to ANSI/UL 498, File E17740 |
|---|---|
| cUL | cUL Listed to ANSI/UL 498, File E17740 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Carton Qty | 10 |
| Case Qty | 100 |
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.30800 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
L1000878 - Ericson Perma-Spec 15-30 AMP Plugs and Connectors
