Part #:
1624-CG

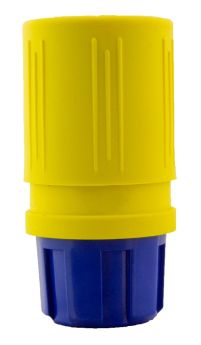

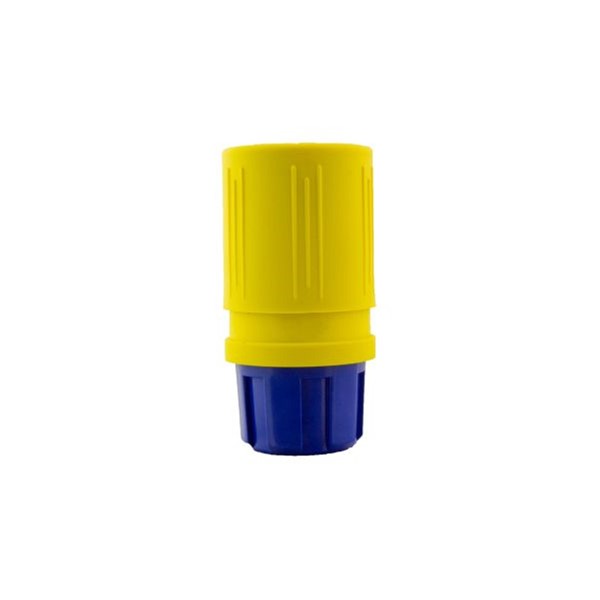

CONNECTOR NEMA L7-15, PERMA-GRIP INDUSTRIAL GRADE YELLOW WIRING DEVICE, LOCKING 15 AMP 277V 1PH 2P/3W, SIZE = SM, 2534
| Active Revision | F |
|---|---|
| Color | Yellow |
| UPC Code | 782862490136 |
| Country of Origin | USA |
- Availability:
Specifications
| Active Revision | F |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | Perma-Grip |
| Category | Wiring Devices |
| Sub Category | Industrial Grade (TPV) |
Technical Info
| Device Type | Connector |
|---|---|
| Blade Style | Locking |
| NEMA Configuration | NEMA L7-15 |
| Amps | 15 |
| Voltage | 277V |
| Phase | 1 |
| Poles / Wires | 2P/3W |
| Environmental Rating | Outdoor |
Standards & Certifications
| UL | UL Listed to ANSI/UL 498, File E17740 |
|---|---|
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Carton Qty | 10 |
| Case Qty | 100 |
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.24000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
